In-Depth Guidance and Continuous Support
STEPS
BEFORE installation of adhesive film, please read carefully our
01
Unpacking & Testing the Film
Open the box carefully and put all films on the long table.
Connect each film to the power via the transformer and verify all work fine.
02

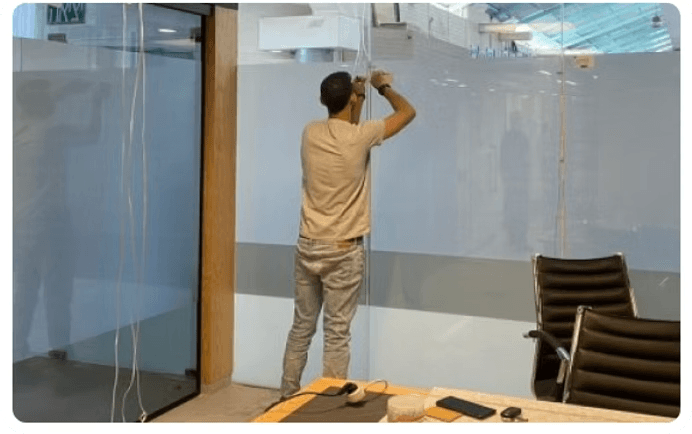

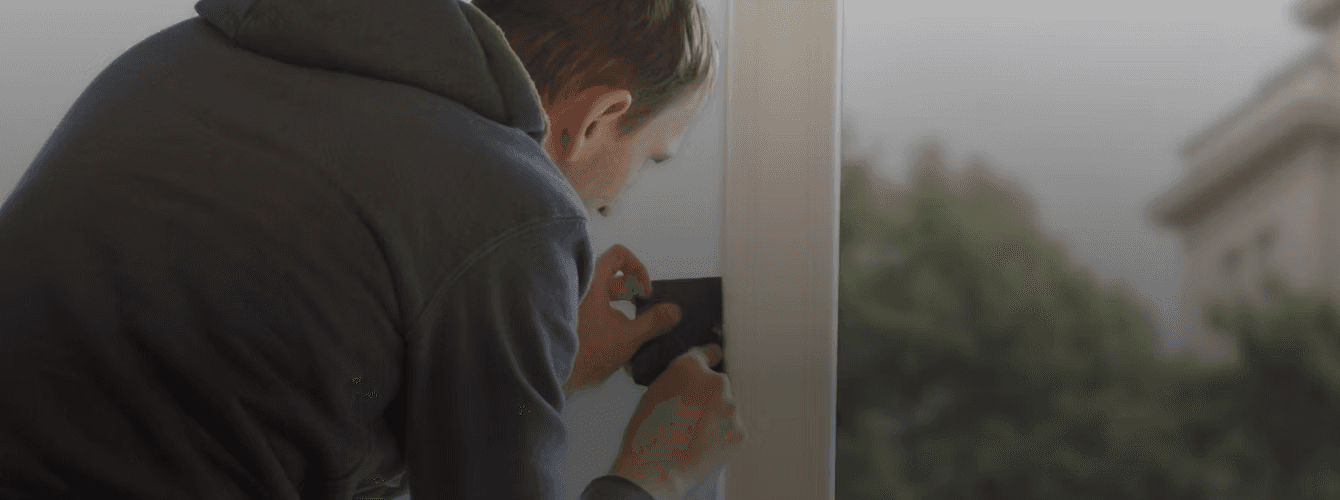

Sticking Expertise
It is a DRY stick…no water allowed; Industrial Alcohol 90% is allowed
Need to clean the glass and film stick side very well, like 2/3 of installation time is glass cleaning
Installer needs patience and persistence, not every technical guy fits…
To stick the film edge you may need a hair fan to soften the film
03
Connecting to Power
Connecting a 48 VAC transformers with remote or switch or both.
Need to weld film wires to the power
04
Visual & Profiles
Client usually expects you to handle not only the film stick but also the frame
It is recommended to have a film edge under the frame or the rubber
If not possible to hide the film edge under the frame, look for creative ways to hide it with a tape or a panel.
BEFORE installation of adhesive film, please read carefully our
Step A
Buy several A4 size samples, ready to plug in to the power.
With these samples you may achieve the following:
Showing to designers, architects and potential clients
Sticking over a glass
Step B
Making several pilots over in your offices
For that purpose, it is recommended:
Choosing ~5 small size windows in your office with access to power.
Reduce 3mm from each of the 4 sides.
If need to cut in for handles or hinges, make a drawing and we will make the cuts
Our shipment to you will include:
Film cut per your size with wires already prepared
Transformer – output 48/60 VAC – switch + remote
Squeezers – tool to make the stick
Leftover films to train
Installation Guide/Video/Tips
Neutral No Alkoxy No ACID Silicone. Silicone MUST be one of these (no warranty for using other brand):
Dow Corning: 795, 799, 995, 1199
Tosseal: 83, 381
Step C
Making a first project with a real client...
Only after Step C is successful we recommend to start
commercially pushing the product.
